Getting Started with Azzurra

Everything in the following page is applicable to Basic theme.

# Installation

To install Azzurra theme in your application please follow these steps:

1. Extract Azzurra zip package in your packages folder

Azzurra zip file contains two Ext packages. Extract both packages.

2. Switch to Azzurra theme

Open your app.json file and select Azzurra in theme property:

"theme": "codaxy-theme-azzurra",

At this point, your application should take Azzurra default gray appearance.

3. Include ui Styles

To include ui styles in app's CSS open sass/src/view/main/Main.scss and add the following snippet.

@include codaxy-all-ui();

The default appearance is boring, so try using ui styles to make your app more visually appealing.

# UI Styles

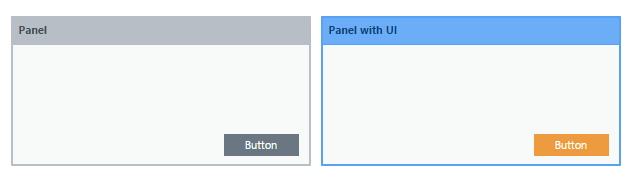

Azzurra heavily relies on the ui component config (see Sencha Docs) for enhancing the appearance of Ext JS widgets. To understand how ui config is applied, check the following example.

var panel = Ext.widget('panel', {
    title: 'Panel',
    frame: true,
    height: 150,
    width: 300,
    buttons: [{
        text: 'Button'
var panel = Ext.widget('panel', {
    title: 'Panel with UI',
    ui: 'blue-panel',
    frame: true,
    height: 150,
    width: 300,
    buttons: [{
        text: 'Button',
        ui: 'orange-button'

The following table shows which Ext components support ui styles.

Widget Colors State
Panel (panel, gridpanel, form)
Tab Panel
Progress Bar

The list of all applicable ui values is shown in the following table. Before using style, let's learn how to include styles in your application's CSS.

State/Widget Window Panel Tab Panel Progress Bar Button
default blue-window blue-panel blue-tab blue-progress blue-button
green-window green-panel green-tab green-progress green-button
red-window red-panel red-tab red-progress red-button
orange-window orange-panel orange-tab orange-progress orange-button
black-window black-panel black-tab black-progress black-button
active blue-window-active blue-panel-active blue-tab-active blue-progress-active blue-button-active
green-window-active green-panel-active green-tab-active green-progress-active green-button-active
red-window-active red-panel-active red-tab-active red-progress-active red-button-active
orange-window-active orange-panel-active orange-tab-active orange-progress-active orange-button-active
black-window-active black-panel-active black-tab-active black-progress-active black-button-active

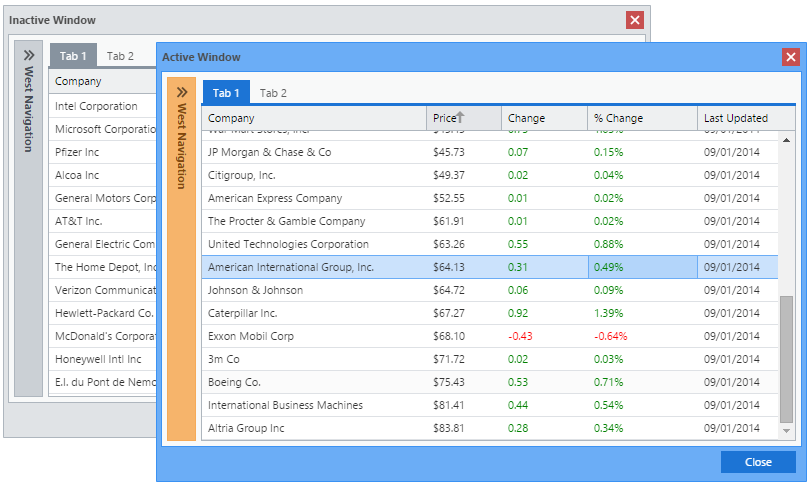

Active Window

Effects of any *-activeui style will be visible only while widget's parent window is active. The widget will turn to gray appearance when the parent window is deactivated (loses focus).

# Windows

Window ui styles are used for coloring windows within an application.

blue-default screenshot

List of available window ui styles is shown below:

  • blue-window-active
  • red-window
  • red-window-active
  • orange-window
  • orange-window-active
  • green-window
  • green-window-active
  • black-window
  • black-window-active

Azzurra includes JavaScript code which sets 'blue-window-active'ui as a default for all windows, which means that by default any window will turn blue once it's activated.

To override the default behavior, you should apply ui style in your window config.

Tab panels, grids, and buttons inherit ui style from the parent window. For that reason in the screenshot above, tab panel, button and grid are also displayed in blue, while the parent window is active.

# Panels

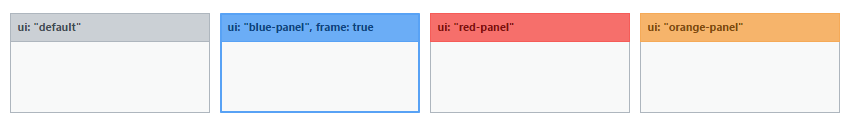

Similar to windows, panel ui styles are used to change the color of the panel's title, as shown in the following example.

blue-default screenshot

items: [{
    title: 'ui: "default"',
    height: 100,
    width: 200
}, {
    title: 'ui: "blue-panel", frame: true',
    ui: 'blue-panel',
    frame: true,
    height: 100,
    width: 200
}, {
    title: 'ui: "red-panel"',
    ui: 'red-panel',
    height: 100,
    width: 200
}, {
    title: 'ui: "orange-panel"',
    ui: 'orange-panel',
    height: 100,
    width: 200

List of available panel ui styles:

  • blue-panel
  • red-panel
  • green-panel
  • orange-panel
  • black-panel
  • blue-panel-active
  • red-panel-active
  • green-panel-active
  • orange-panel-active
  • black-panel-active

Panel ui styles may also be applied to grid and form panels (grid, form).

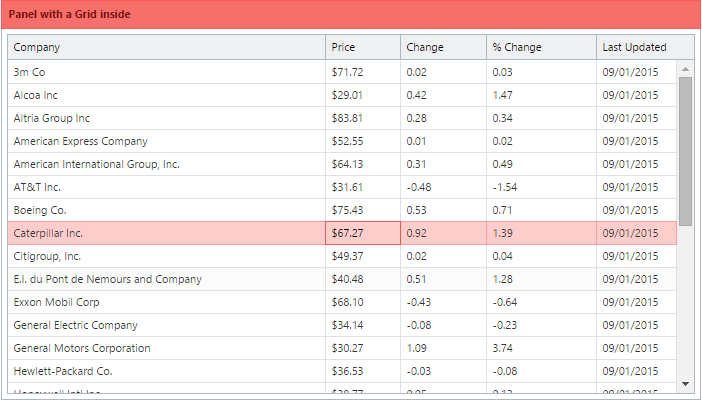

Panels do not inherit ui color from the parent window and appear gray, however, any grid within the panel will inherit its ui color.

blue-default screenshot

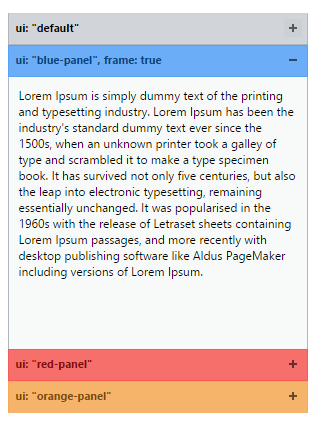

Panel ui style can be set for accordion items too.

blue-default screenshot

# Tab Panels

Tab panel ui styles are used to enhance the visual appearance of tab panels.

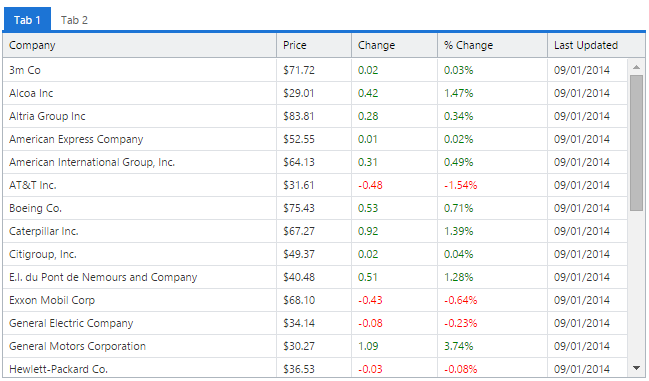

blue-default screenshot

List of available tab ui styles:

  • blue-tab
  • red-tab
  • green-tab
  • orange-tab
  • black-tab
  • blue-tab-active
  • red-tab-active
  • green-tab-active
  • orange-tab-active
  • black-tab-active

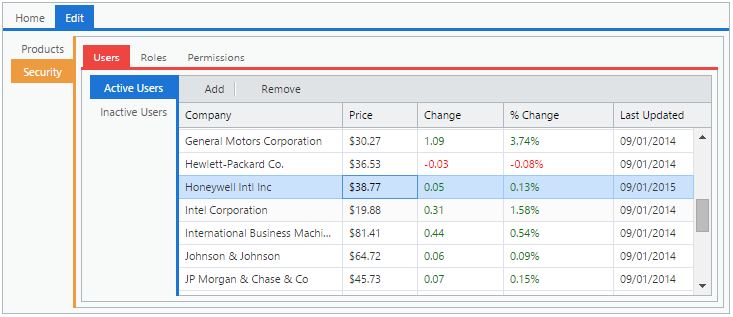

A grid contained within tab panel inherits selection color from ui style applied to that tab panel. blue-default screenshot

# Buttons

Buttons can be styled using ui styles:

  • blue-button
  • red-button
  • green-button
  • orange-button
  • black-button
  • blue-button-active
  • red-button-active
  • green-button-active
  • orange-button-active
  • black-button-active

Any button located inside a window will inherit parent window's ui color.

# Progress Bars

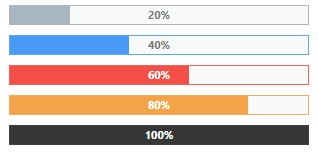

Progress bar components can be styled using ui styles:

  • blue-progress
  • red-progress
  • green-progress
  • orange-progress
  • black-progress
  • blue-progress-active
  • red-progress-active
  • green-progress-active
  • orange-progress-active
  • black-progress-active
